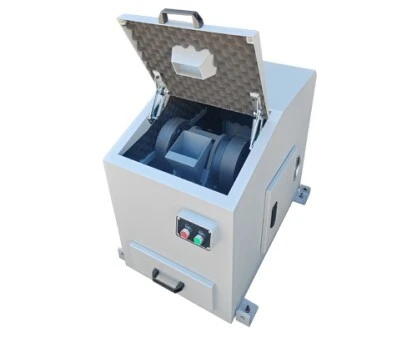

Environmentally-friendly jaw crusher Eco-friendly jaw breaker
Product IntroductionModel
The product design is mechatronic, environmentally friendly. It is suitable for various medium-hard ores such as coarse crushed and medium crushed in the laboratory. It is widely used in the preparation of coal or other medium-hardness material samples in coal, electric power, metallurgy, geology, chemical industry, scientific research and other industries. It has the characteristics of simple structure, stable performance, uniform and accurate crushing particle size, flexible adjustment of discharging particle size, and low noise. The jaw plate of this series of jaw crusher is made of high manganese steel with good wear resistance, which can be used for the crushing of coke, ceramic silicate, ferromanganese, ferrotitanium, rare earth alloy ore and other materials.
Technical parameters
1.Jaw plate material: high manganese steel
2. Feed size: ≤45mm
3.Discharge particle size : 3-10mm
4.Reduction ratio: 1/2, 1/4, 1/8 (adjustable)
5. Power of the reduction motor: 0.55kw
6.Production capacity :45-550kg/h
7. Speed of the vertical shaft: 466r/min
8. Motor power 2.2kw
9. Power supply :380V/50Hz
10.Dimensions:1100×770×1370mm
11. Weight : 410kg
