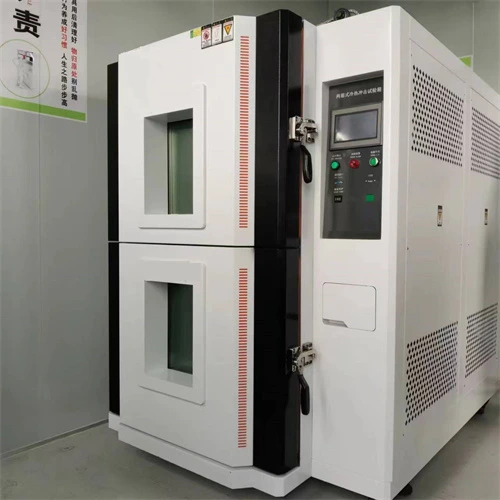

Programmable Thermal Shock Test Chamber

The temperature shock test chamber is used to test the temperature shock resistance of various materials, the temperature shock resistance of material is obtained by the applicability under extremely high and low temperature condition, thus to know the material and products quality. The temperature shock test chamber is kind of very common environmental test chamber.

Standards

GB/T2423.1-1989low temperature test method

GB/T2423.2-1989 high temperature test method

GB/T2423.22-1989 temperature varying test method

GJB150.5-86 temperature shock test

GJB360.7-87 temperature shock test

GJB367.2-87 405 temperature shock test

Inquiry

Write a Review

Technical Specifications

Model	CT-TCJ27	CT-TCJ50	CT-TCJ 80	CT-TCJ 150	CT-TCJ 225
Internal volume(L)	27	50	80	150	225
Internal size(cm)	30×30×30	35×40×35	40×50×40	50×60×50	60×70×60
Overall size(cm)	110×115×160	135×125×180	147×135×150	192×155×160	220×165×170
Temperature recovery time		Approx. 3～5min
Material	Internal material	SUS304 steel sheet
	Heat insulation material	Ultrafine glass cotton+ polyamine foam
Construction	High temperature chamber	Fan: centrifuge fan and axial flow fan
	Driving unit	Pneumatic air cylinder
		Air compressor(optional)
	Compressor	Internal brand original import, full or semi sealed compressor, no noise
	Refrigerant	Environment friendly r-507/r-23a
	Evaporimeter	Finned heat exchanger, chiller
	Condenser	SUS braze plate heat exchanger
Controller	Running mode	Constant & programmable
	Set value range	Temperature:-100℃+300℃
	Input	Pt100, t type thermal couple
	Control mode	PID
Standard configuration		1 observe window, 1 50mm test hole, sample frame, spotlight 1pc
