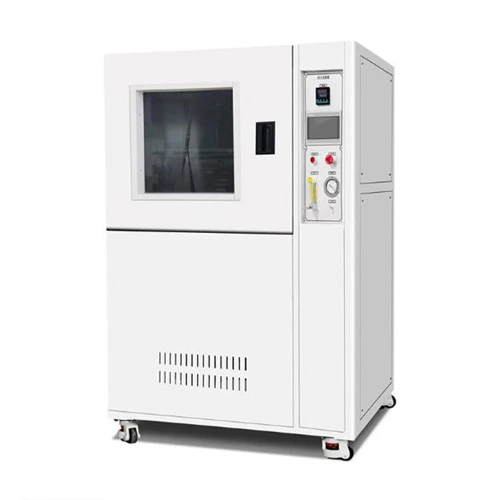

Sand and Dust Test Chamber Environmental Tester

The dust test chamber is specially used to perform environmental test thus provide reference for scientific research, products development, and quality inspection, so as to determine the protection degree (IP) of equipments enclosure. It’s kind of common environmental test chamber.

Inquiry

Write a Review

Technical specifications

Noted	1. The below data are based on environmental temperature 25℃, and no load with the work chamber 2. Can be tailor made according to user’s specific requirements
Model	CT-SC-500	CT-SC-800	CT-SC-010	CT-SC-015	CT-SC-020
Work chamber	800×800 ×800 mm	800×1000 ×1000 mm	1000×1000×1000	1000×1500 ×1000	1200×2000 ×1200
Power	3.0kw	3.5kw	3.5kw	5.0kw	6.0kw
Dust concentration	Talcum powder 2~4Kg/ m3
Dust particle size	1~10um(particle≤5um occupy 50% )
Test temperature	RT+10℃~50℃
Flow rate	No over than 2m/s
Sieve aperture	75μm
Test dust	Dry talcum powder, silicon cement,
Controller	Imported LCD display, PLC program control
Control mode	PID+SSR output
Sensor	PT100Ω/MV
Heating system	Mica plate heating cycle
Dust blow system	Centrifuge blower
Protection system	Electric leakage, short circuit, over temperature, motor overheat
Timing function	0.1~999.9(S,M,H) adjustable
Enclosure material	Quality carbon steel sheet, static plastic spray treatment
Liner material	SUS304 sheet
Door frame sealing	double layer high low temperature aging resistance silicon rubber sealing strip
Standard accessories	SUS sample frame 2pcs, test fairlead(Ø50,Ø80,Ø100mm)1set
