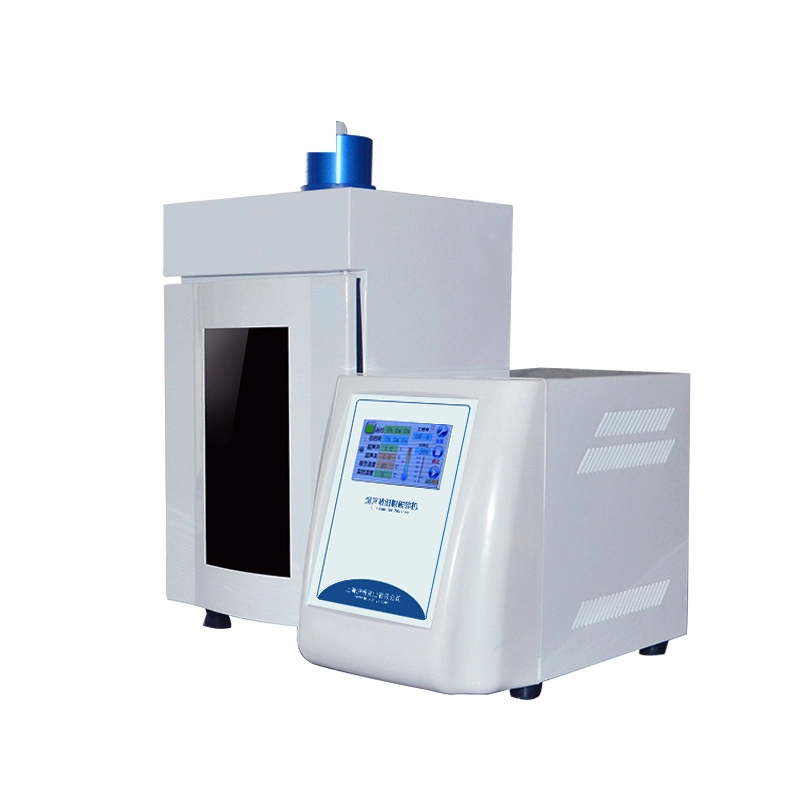

Split type ultrasonic cell disruptor Ultrasonic cell Processor Ultrasoni cell crusher
Product Features
1.The new generation product features comprehensive functions, beautiful appearance, reliable performance, and adopts a 4.3-inch TFT touch screen display.
2.High degree of intelligence, centralized control by central microcomputer, ultrasound time and power can be set arbitrarily.
3.3Sample temperature monitoring display, frequency microcomputer, tracking, automatic fault alarm.
4.A matching export hot selling soundproof box, reducing noise by more than 70%.
5.Equipped with a set of titanium alloy amplitude rods, it can continuously achieve ultrasound for more than one hour.
Detailed parameters
|
Model |
ZY-CS-FS-150W |
ZY-CS-FS-250W |
|
Power |
1.5-150W continuously adjustable |
2.5-250W continuously adjustable |
|
Crushing capacity |
0.1-150mL (requires corresponding variable amplitude pole to be selected) |
0.1-300mL (corresponding variable amplitude pole needs to be selected) |
|
Display mode |
True color 4.3-inch capacitive touch screen display |
True color 4.3-inch capacitive touch screen display |
|
Single ultrasound time |
0.1-99.9S |
0.1-99.9S |
|
Single gap time |
0.1-99.9S |
0.1-99.9S |
|
Total time |
1-99H59M59S (ultrasound+gap) |
1-99H59M59S (ultrasound+gap) |
|
frequency range |
20-25KHz |
20-25KHz |
|
Temperature range |
0-100 degrees (optional low-temperature constant temperature) |
0-100 degrees (optional low-temperature constant temperature) |
|
Alarm function |
Time, overload, no-load, overtemperature |
Time, overload, no-load, overtemperature |
|
Random amplitude rod |
φ6(mm) |
φ6(mm) |
|
Optional random amplitude lever |
2, 3, 8 (mm) |
2, 3, 8, 10 (mm) |
|
Data storage |
20 groups |
20 groups |
|
Power Supply |
220V/110V/50HZ/60Hz (optional 110V) |
220V/110V/50HZ/60Hz (optional 110V) |
|
Instrument net size |
410*225*290(mm) |
410*225*290(mm) |
|
Net weight of the host |
12kg |
12kg |
|
Gross weight of the host |
16kg |
16kg |
|
Host packaging |
470*305*430(mm) |
470*305*430(mm) |
|
Gross weight of soundproof box |
10kg |
10kg |
|
Exterior packaging of soundproof box |
350*350*550(mm) |
350*350*550(mm) |
|
Optional features |
Computer communication+data printing+soundproof speaker lighting or sterilization |
Computer communication+data printing+soundproof speaker lighting or sterilization |
|
control mode |
Single chip microcontroller+TFT touch control |
Single chip microcontroller+TFT touch control |
|
Voice alarm and prompt |
have |
have |
|
Optional large soundproof box |
Yes (external dimensions: 35cm length * 35cm width * 65cm height) |
Yes (external dimensions: 35cm length * 35cm width * 65cm height) |
Detailed parameters
|
Model |
ZY-CS-FS-1000W |
ZY-CS-FS-3000W |
|
Power |
10-1000W continuously adjustable |
1000-3000W automatic adjustable |
|
Crushing capacity |
0.1-750ML (corresponding variable amplitude pole needs to be selected) |
500-5000ML (corresponding variable amplitude pole needs to be selected) |
|
Display mode |
True color 4.3-inch capacitive touch screen display |
True color 4.3-inch capacitive touch screen display |
|
Single ultrasound time |
0.1-99.9S |
0.1-99.9S |
|
Single gap time |
0.1-99.9S |
0.1-99.9S |
|
Total time |
1-99H59M59S (ultrasound+gap) |
1-99H59M59S (ultrasound+gap) |
|
Frequency range |
20-25KHz |
19.5-20.5KHz |
|
Temperature range |
0-100 degrees (optional low-temperature constant temperature) |
0-100 degrees (optional low-temperature constant temperature) |
|
Alarm function |
Temperature, time, overload, no-load, overtemperature |
Temperature, time, overload, no-load, overtemperature |
|
Random amplitude rod |
Φ6(mm) |
Extended type with a diameter of 40 * 250mm |
|
Optional random amplitude lever |
2, 3, 8, 10, 12, 15 (mm) |
Extended type with a diameter of 40 * 370mm |
|
Data storage |
20 groups |
20 groups |
|
Power Supply |
220V/110V/50HZ/60Hz (optional 110V) |
220V/110V/50HZ/60Hz (optional 110V) |
|
Instrument net size |
410*225*290(mm) |
510*225*290(mm) |
|
Net weight of the host |
12kg |
15kg |
|
Gross weight of the host |
16kg |
21kg |
|
Host packaging |
470*305*430(mm) |
470*305*430(mm) |
|
Gross weight of soundproof box |
10kg |
15kg |
|
Exterior packaging of soundproof box |
350*350*550(mm) |
430*415*730(mm) |
|
Optional features |
Computer communication+data printing+soundproof speaker lighting or sterilization |
Computer communication+data printing+soundproof speaker lighting or sterilization |
|
control mode |
Single chip microcontroller+TFT touch control |
Single chip microcontroller+TFT touch control |
|
Voice alarm and prompt |
have |
have |
|
Optional large soundproof box |
Yes (external dimensions: 35cm length * 35cm width * 65cm height) |
Yes (external dimensions: 35cm length * 35cm width * 65cm height) |
|
|
|
Electric remote control automatic lifting of soundproof box |
Detailed parameters
|
Model |
ZY-CS-FS-1200W |
ZY-CS-FS-1800W |
|
Power |
12-1200W continuously adjustable |
18-1800W continuously adjustable |
|
Crushing capacity |
1-1000ML (corresponding variable amplitude pole needs to be selected) |
1-1200ML (corresponding variable amplitude pole needs to be selected) |
|
Display mode |
True color 4.3-inch capacitive touch screen display |
True color 4.3-inch capacitive touch screen display |
|
Single ultrasound time |
0.1-99.9S |
0.1-99.9S |
|
Single gap time |
0.1-99.9S |
0.1-99.9S |
|
Total time |
1-99H59M59S (ultrasound+gap) |
1-99H59M59S (ultrasound+gap) |
|
frequency range |
19.5-20.5KHz |
19.5-20.5KHz |
|
Temperature range |
0-100 degrees (optional low-temperature constant temperature) |
0-100 degrees (optional low-temperature constant temperature) |
|
Alarm function |
Temperature, time, overload, no-load, overtemperature |
Temperature, time, overload, no-load, overtemperature |
|
Random amplitude rod |
Φ20(mm) |
Φ22(mm) |
|
Optional random amplitude lever |
3, 6, 10, 15, 22, 25 (mm) |
3, 6, 10, 15, 20, 25 (mm) |
|
Data storage |
20 groups |
20 groups |
|
Power Supply |
220V/110V/50HZ/60Hz (optional 110V) |
220V/110V/50HZ/60Hz (optional 110V) |
|
Instrument net size |
410*225*290(mm) |
410*225*290(mm) |
|
Net weight of the host |
15kg |
15kg |
|
Gross weight of the host |
19kg |
19kg |
|
Host packaging |
470*305*430(mm) |
470*305*430(mm) |
|
Gross weight of soundproof box |
10kg |
10kg |
|
Exterior packaging of soundproof box |
350*350*550(mm) |
350*350*550(mm) |
|
Optional features |
Computer communication+data printing+soundproof speaker lighting or sterilization |
Computer communication+data printing+soundproof speaker lighting or sterilization |
|
control mode |
Single chip microcontroller+TFT touch control |
Single chip microcontroller+TFT touch control |
|
Voice alarm and prompt |
have |
have |
|
Optional large soundproof box |
Yes (external dimensions: 35cm length * 35cm width * 65cm height) |
Yes (external dimensions: 35cm length * 35cm width * 65cm height) |
Detailed parameters
|
Model |
ZY-CS-FS-650W |
ZY-CS-FS-900W |
|
Power |
6.5-650W continuously adjustable |
9-900W continuously adjustable |
|
Crushing capacity |
0.1-500ML (requires corresponding variable amplitude pole to be selected) |
0.1-600ML (corresponding variable amplitude pole needs to be selected) |
|
Display mode |
True color 4.3-inch capacitive touch screen display |
True color 4.3-inch capacitive touch screen display |
|
Single ultrasound time |
0.1-99.9S |
0.1-99.9S |
|
Single gap time |
0.1-99.9S |
0.1-99.9S |
|
Total time |
1-99H59M59S (ultrasound+gap) |
1-99H59M59S (ultrasound+gap) |
|
frequency range |
20-25KHz |
20-25KHz |
|
Temperature range |
0-100 degrees (optional low-temperature constant temperature) |
0-100 degrees (optional low-temperature constant temperature) |
|
Alarm function |
Time, overload, no-load, overtemperature |
Temperature, time, overload, no-load, overtemperature |
|
Random amplitude rod |
φ6(mm) |
φ6(mm) |
|
Optional random amplitude lever |
2, 3, 10, 12 (mm) |
2, 3, 10, 12 (mm) |
|
Data storage |
20 groups |
20 groups |
|
Power Supply |
220V/110V/50HZ/60Hz (optional 110V) |
220V/110V/50HZ/60Hz (optional 110V) |
|
Instrument net size |
410*225*290(mm) |
410*225*290(mm) |
|
Net weight of the host |
12kg |
12kg |
|
Gross weight of the host |
16kg |
16kg |
|
Host packaging |
470*305*430(mm) |
470*305*430(mm) |
|
Gross weight of soundproof box |
10kg |
10kg |
|
Exterior packaging of soundproof box |
350*350*550(mm) |
350*350*550(mm) |
|
Optional features |
Computer communication+data printing+soundproof speaker lighting or sterilization |
Computer communication+data printing+soundproof speaker lighting or sterilization |
|
Control mode |
Single chip microcontroller+TFT touch control |
Single chip microcontroller+TFT touch control |
|
Voice alarm and prompt |
have |
have |
|
Optional large soundproof box |
Yes (external dimensions: 35cm length * 35cm width * 65cm height) |
Yes (external dimensions: 35cm length * 35cm width * 65cm height) |
