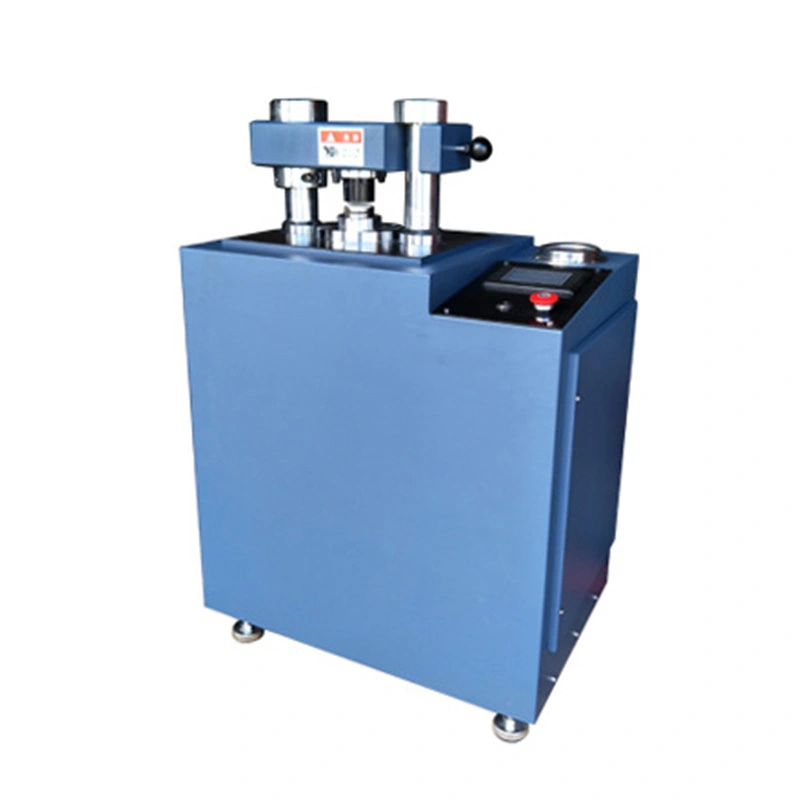

ZY-YM Hydraulic Press For Sample Preparation
The hydraulic press is used for molding of various kinds of solid samples which are used for XRF spectrum analysis, it’s suitable for sample molding of metal, cement, silicic acid, batteries, ceramics etc., it’s a kind of very common sample preparation equipment in analytical laboratory.
Technical Specifications
| Application | Sample molding for spectrum analysis |
| Applications | Chemical / Synthetic Materials, Geology / Metallurgy, Construction Materials, Environment / Recycling, Glass / Ceramic |
| Control Mode | Touch screen operation, PLC control |
| Mold type | Boric acid / steel ring / aluminum cup / plastic ring / low pressure polyethylene |
| Mold Size | Steel ring 40mm/35mm |
| Boric acid ring 40mm/34mm | |
| Plastic cup 40mm/34mm(normal size) Other size optional: 38mm/32mm,32mm/28mm,29.2mm/24mm,25.2mm/20mm,19.2mm/14mm |
|
| Available Max Pressure | 20T/30T/40T/60T/80T/100T/120T/200T(or customized made) |
| Dwell Time | 0~999s adjustable |
| Max Stroke | 100mm |
| Column Space | 220mm |
| Overall Size | 580×550×1100(mm) |
| Net Weight | Approx 265kg |
| Power Supply | AC 110V/220V/380V,50Hz/60Hz, 1ph/3ph |
| Motor Power | 1.1KW |
| Working Environment | Recommended working environment: RT~40℃;If the operation temperature is below minus or in plateau area, please inform the manufacturer in advance. |
Features
Suitable for used with mold type of Boric acid ring, steel ring, aluminum cup, plastic ring.
Touch screen operation, PLC programmable, pressure-holding time adjustable.
1-key operation, automatic finishing of molding, extrusion, automatic reset.
Easy operation, better performance, compact size.
Molds Option
Customer can select any one of the below 4 types when ordering, they are: 1. Plastic ring 2. Steel ring 3. Aluminum cup 4. Boric acid.
Real Shot
