Profesional manufacturer & supplier for test equipment & analytical instruments since 2003.

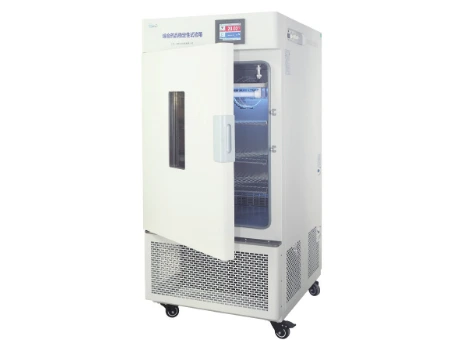

Comprehensive Drug Photostability Test Box (With UV light monitoring and control)

The comprehensive drug photostability test box (with UV monitoring and control) developed by Yiheng has added visible and ultraviolet light monitoring and control on the basis of the original Yiheng GSD \ GSP \ GP comprehensive stability test box. It is an equipment for pharmaceutical and cosmetic enterprises to carry out GMP certification. Meets the light stability testing conditions outlined in the ICH guidelines.

Standards: Guidelines for Drug Stability Testing in the 2020 Pharmacopoeia and Relevant Articles of GB/T10586-2006 Manufacturing

Inquiry

Write a Review

Technical Parameter

Model	LHH-150GSD-UV LHH-150GSP-UV	LHH-250GSD-UV LHH-250GSP-UV	LHH-500GSD-UV LHH-500GSP-UV	LHH-800GSD-UV LHH-800GSP-UV	LHH-1000GSD-UV LHH-1000GSP-UV LHH-1500GSP-UV	LHH-150GP-UV LHH-250GP-UV LHH-400GP-UV
Temperature Control Range	0-65 ℃ (illuminated at 15-50 ℃)
Temperature fluctuation/uniformity	±0.5℃ /±2℃~±3℃
Humidity range/deviation	25~95%RH/±3%RH					No
Light intensity/error	Cold white fluorescence 0-6000Lux adjustable/± 500Lux, UV light intensity adjustable
Ultraviolet spectral range	320~400nm
Meets testing standards	ICH Q1B command, cold white fluorescence ≥ 1.2 × 106Lux.hr, near-ultraviolet fluorescence ≥ 200 w.hr/m2
Light source configuration	Cold white fluorescent lamp (in accordance with ISO 10977) and UVA near ultraviolet fluorescent lamp
Standard light source	Cold white light lamp (D656500K), UV lamp with a wavelength range of 320-400nm
Refrigeration system/refrigeration method	Two sets of independent original imported fully enclosed compressors with automatic switching
Controller	Programmable touch screen controller
Power supply	AC220V 50HZ			AC380V 50HZ		AC220V 50HZ
Operating power	About 680W	About 750W	About 1400W	About 3400W	About 2400W/3000W	About 450W/450W/600W
COperating power	2100W	2500W	3910W	7350W	7350W/10800W	1450W/1700W/3200W
Volume	150L	250L	500L	800L	1000L/1500L	150L/250L/400L
Lighting method	Top lighting/box door lighting		Top lighting			Box door lighting/top lighting
Embedded printer	standard configuration
Safety devices	Compressor overheat protection, fan overheat protection, over temperature protection Compressor overpressure protection, overload protection, water shortage protection, wired monitoring and alarm system (optional)
