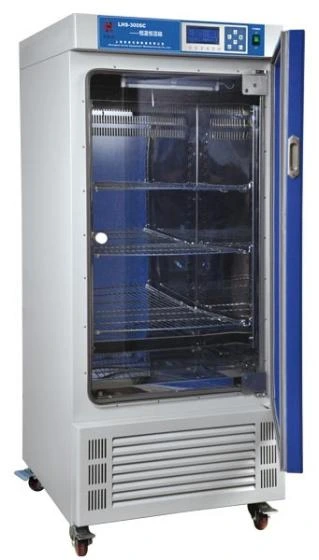

THWS LCD Display Fluoride-free Constant Temperature Humidity Chamber
Technical specifications
|
Term |
THWS -100CH |
THWS -150SC |
THWS -250SC |
THWS -300SC |
THWS -100HC |
THWS -150HC |
THWS -250HC |
THWS -300HC |
||
|
Power supply |
AC220V 50HZ |
|||||||||
|
Temperature control range |
RT+10~85C |
Humidification:15~45C, no Humidification 10~45C |
0~60C |
|||||||
|
Temperature fluctuation |
±1C |
High temperature:±0.5C Low temperature: ±1.5C |
High temperature: ±0.5C, Low temperature±1C |
|||||||
|
Temperature resolution |
0.1C |
|||||||||
|
Humidity control range |
80~95%RH |
60~85%RH |
40~85%RH |
|||||||
|
Input power |
1100W |
620W |
730W |
850W |
1100W |
1400W |
1950W |
2000W |
||
|
Work chamber size W×D×H(mm) |
450×380×590 |
480×400×780 |
580×500×850 |
580×540×950 |
450×380×590 |
480×400×780 |
580×500×850 |
580×540×950 |
||
|
Overall size W×D×H(mm) |
575×605×1160 |
605×625×1350 |
705×725×1525 |
705×765×1640 |
575×605×1160 |
605×625×1350 |
705×725×1525 |
705×765×1640 |
||
|
Nominal volume |
100L |
150L |
250L |
300L |
100L |
150L |
250L |
300L |
||
|
Bracket |
2pcs |
3pcs |
2pcs |
3pcs |
||||||
|
Timing range |
1~9999min |
|||||||||
|
* The above specifications are tested under zero load, no magnetic, no vibration, ambient temperature 20℃, ambient humidity 50%RH |
||||||||||
